The proposed project aims to develop an advanced solar tracking system designed for concentrated solar energy applications and its conversion into mechanical and electrical energy through a Stirling engine. The system is designed to ensure optimal orientation of an optical assembly consisting of Fresnel lenses, in order to maximize the concentrated solar radiation flux on the thermal receiver. This approach is essential for increasing energy efficiency and validating the feasibility of concentrated solar energy technologies.

In the current context of energy transition, concentrated solar energy solutions represent a promising alternative to conventional photovoltaic systems, offering the possibility of achieving high temperatures and powering thermal engines with superior yields. The Stirling engine, used in this project, is a relevant example, as it allows the conversion of thermal energy into mechanical and subsequently electrical energy, without polluting emissions. To achieve optimal performance, precise tracking of the sun's position is necessary, which involves an advanced control system capable of managing two-axis movements (azimuth and elevation) and compensating for external disturbances.

Research, Development & Innovation Activities

(WP1) Experimental Model Design

(1.1) Mechanical design of the solar tracking system
(1.2) Design of the solar tracking positioning control system
(1.3) Optical system design
(1.4) Heat exchanger and recovery system design
(1.5) Implementation of the solar tracking positioning control system
(1.6) Implementation of the Stirling engine heat exchanger

(WP2) Fabrication and Assembly of the Demonstrative Model

(2.1) Analysis and scientific selection of materials for the experimental model
(2.2) Implementation of the optical mounting and adjustment system
(2.3) Assembly of the experimental model
(2.4) Fine-tuning and adjustments

(WP3) Functionality Tests

(3.1) Execution of functionality tests

Research Results & Achievements

(1.1) Mechanical Design of the Solar Tracking System

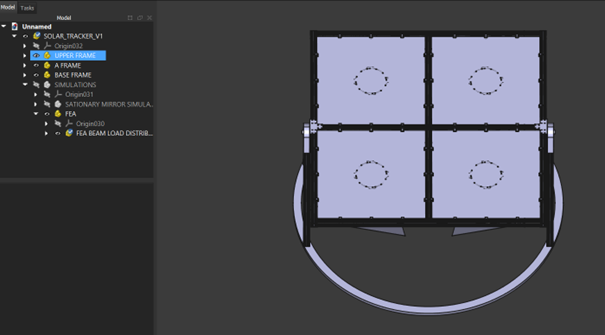

The mechanical design of the solar tracking system was developed to ensure stability and precise orientation, using a rotary platform for azimuth movement and an A-frame structure for elevation adjustment, supporting four large Fresnel lenses with a total capture area of approximately 8 m² for efficient solar energy concentration.

(1.2) Design of the Solar Tracking Positioning Control System

The solar tracking control system was implemented by integrating hardware and software components, including I²C-based BNO055 sensor drivers as ROS nodes, orientation fusion using the robot_localization EKF, solar position calculation via SunCalc API, and PID-based motor control for azimuth and elevation to ensure autonomous and precise sun alignment.

(1.3) Optical System Design

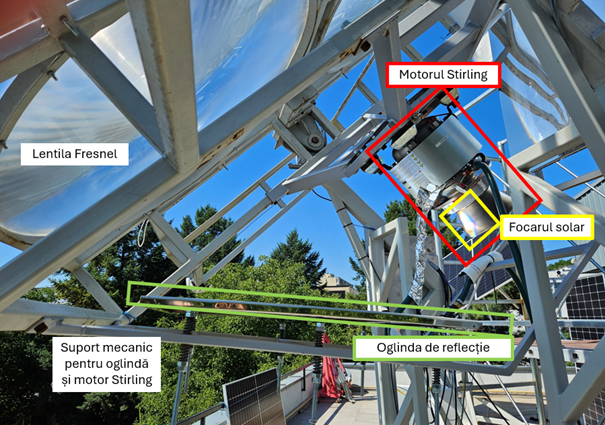

The goal of this activity was to design an optical system that concentrates solar energy using Fresnel lenses and redirects it via mirrors onto a solar receiver integrated into the Stirling engine heat exchanger, using TracePro software for optical design, thermal flux analysis, and power distribution simulation.

(1.4) Heat Exchanger and Recovery System Design

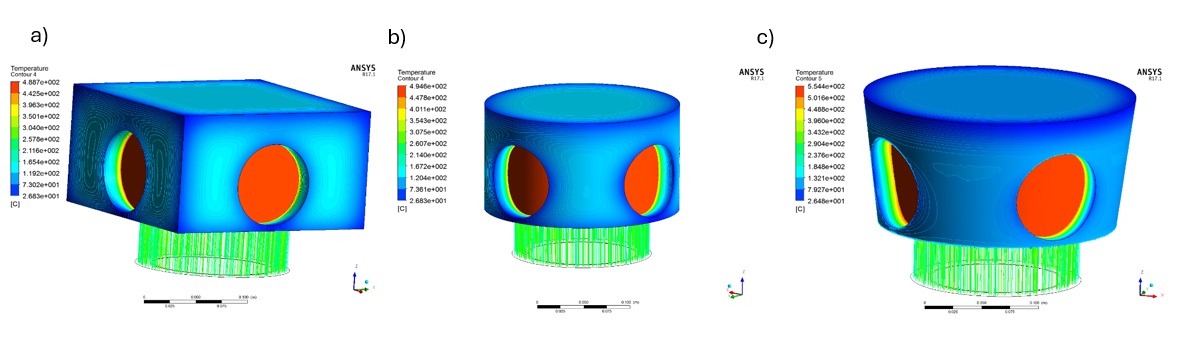

The objective of this activity was to design the Stirling engine heat exchanger based on CFD simulations and optical analysis of concentrated solar flux distribution, using ANSYS Fluent to model thermal and fluid dynamics for performance optimization.

(1.5) Implementation of the solar tracking positioning control system

An important achievement in this phase was conducting preliminary tests using an adapted solar tracker, which, despite being limited to two Fresnel lenses, enabled Stirling engine operation and energy generation, validating key design concepts and confirming the feasibility of the proposed system for future implementation.

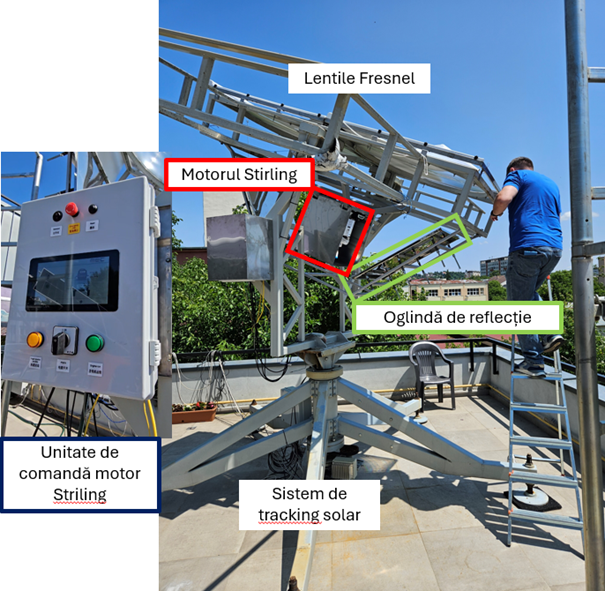

Implementation of solar tracking positioning control system

(1.6) Implementation of the Stirling Engine Heat Exchanger

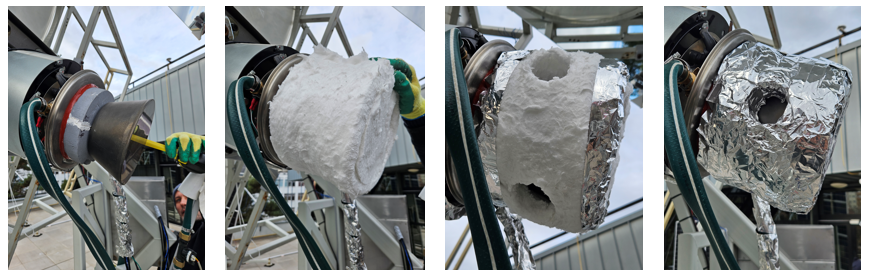

Based on numerical simulations, the hot side of the Stirling engine was optimized using an insulated conical receiver, implemented with 2 cm mineral wool and aluminum adhesive tape for thermal protection and mechanical stability, following a structured assembly process to ensure efficient heat retention and solar flux concentration.

Implementation of Stirling engine heat exchanger
