○  In this work period we designed and built the "main control module" for the biodiesel generator system. We also made some good progress and we are now very close to complete the entire system. The generator is now in its final assembly, testing and trouble-shooting phase. The block diagram for the "main control module" is presented in Figure 1 and Figure 2 presents the board of the control module, mounted on the biodiesel generator chassis.
The control module is based on a PIC Microchip microcontroller. The user interface consists of a LCD output display and a micro-keyboard made with four push-buttons. The oil pumps and the rest of the peripheral devices are controlled with the help of a relay board.

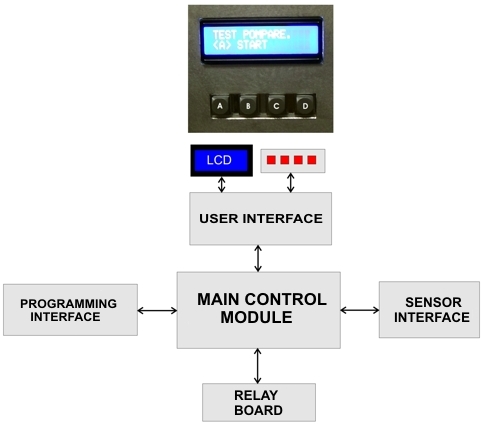

Figure 1. The block diagram for the main control module.

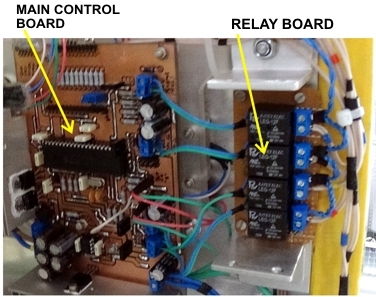

Figure 2. The main control module and the relay board mounted to the biodiesel generator's chassis.

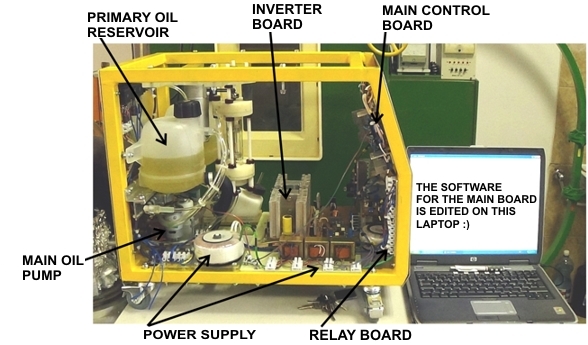

Figure 3 presents the entire system, placed on the workbench for the moment, in its final assembly phase and in the attached video clip you can see the first test performed on the generator - a pump check. Please CLICK on the PLAY button :)
Figure 3. The main control board and the relay board mounted on the chassis.
